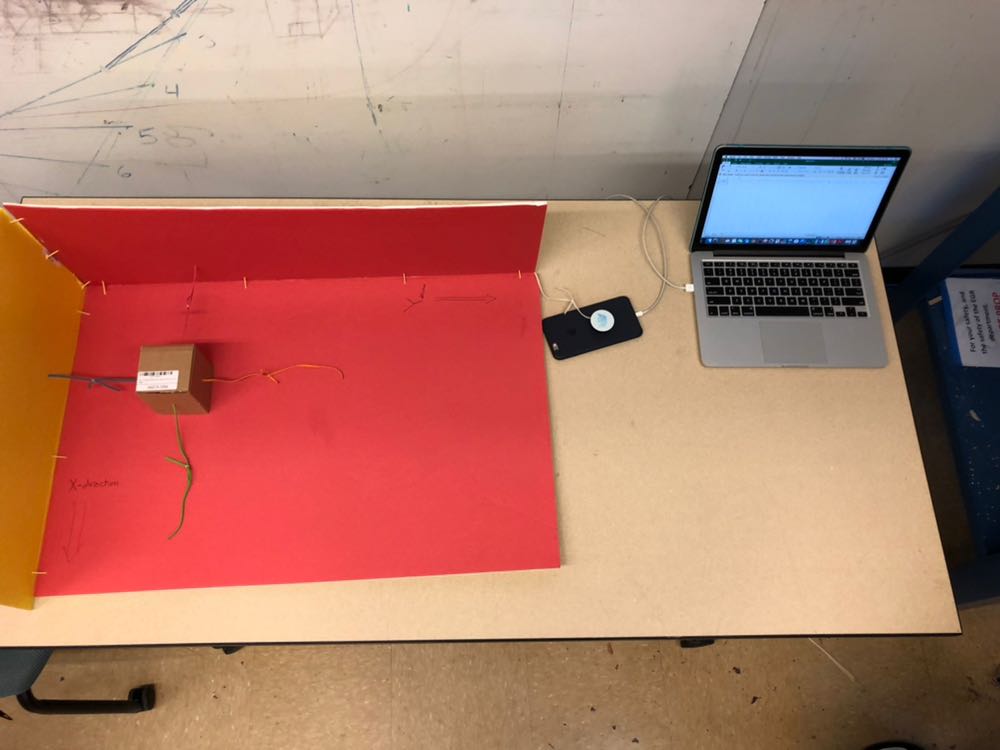

-The team did this prototype to best explained how the final design will look like:


Designs Considered

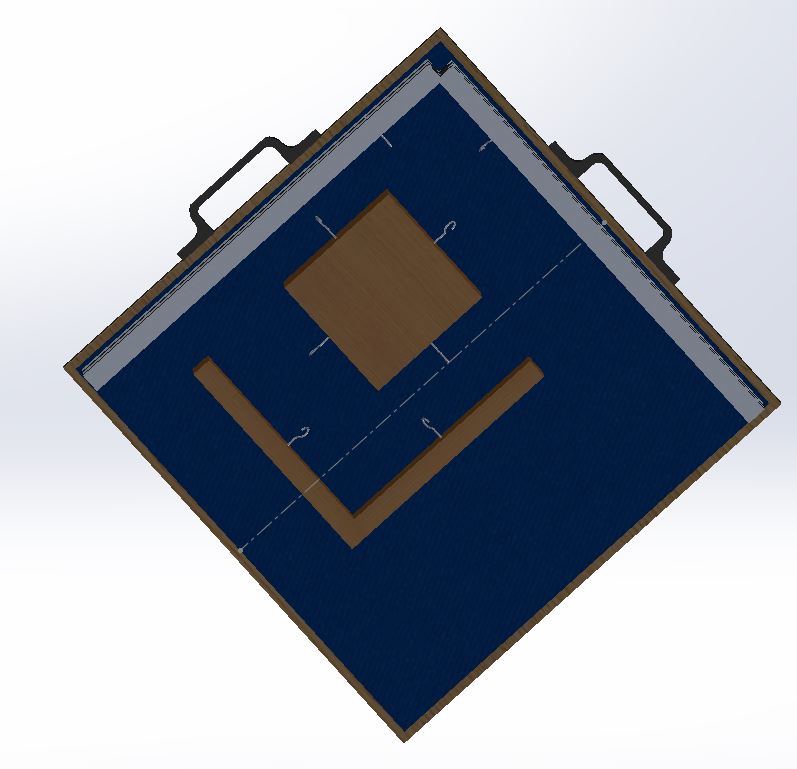

-Design assembly through Solidworks

-Design CAD drawing

Design changes

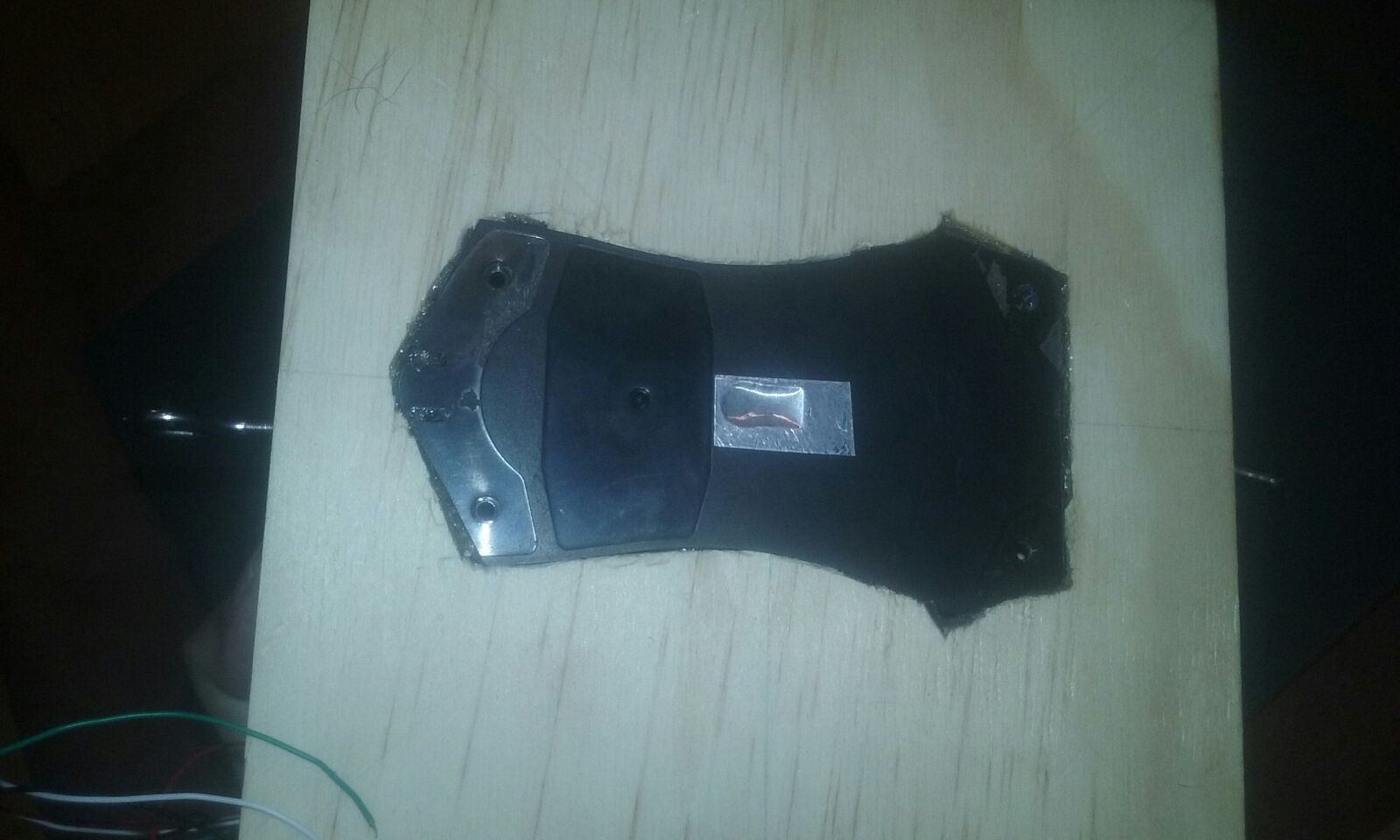

  1. PS/2 mouse that is mounted at the bottom of the box.

2. Sensors connection take a part inside the box.

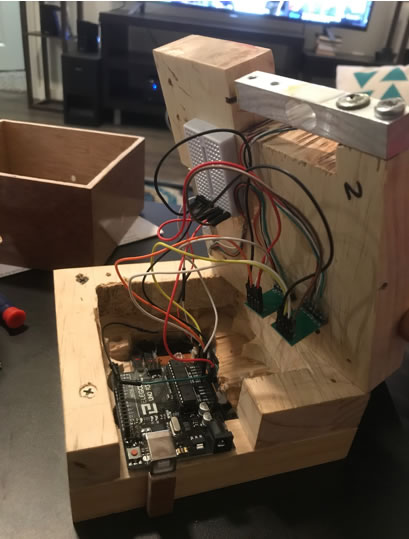

sensors connection

3. Current design with most of the functions are ready to work.

new design

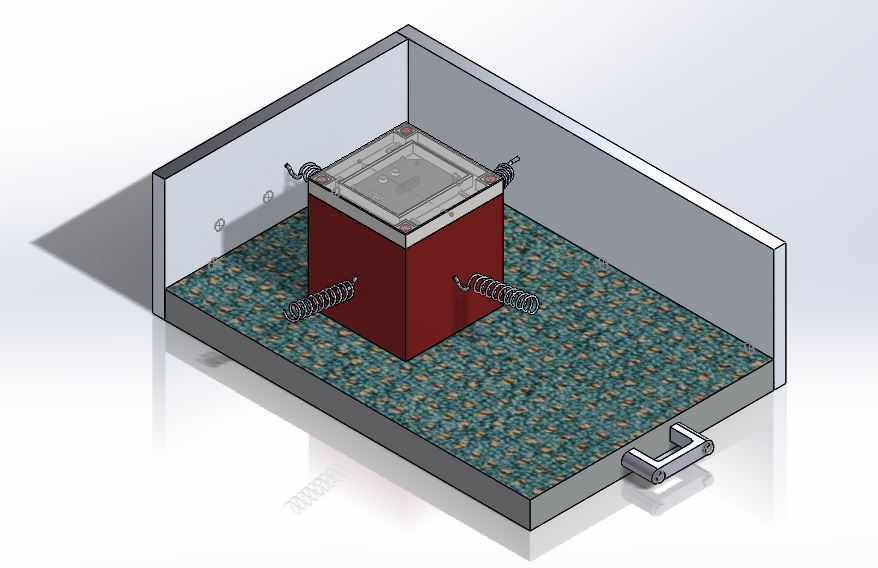

4. Final CAD modeling assembly for the deisgn.

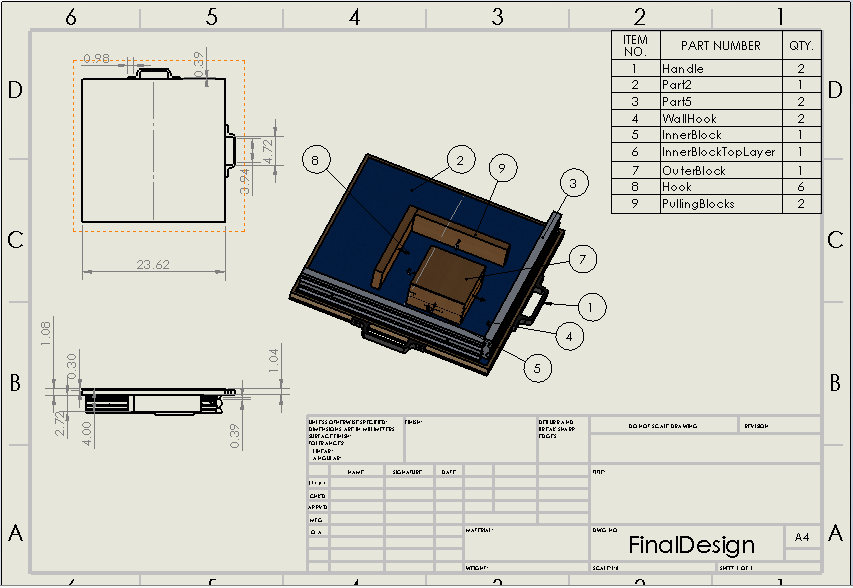

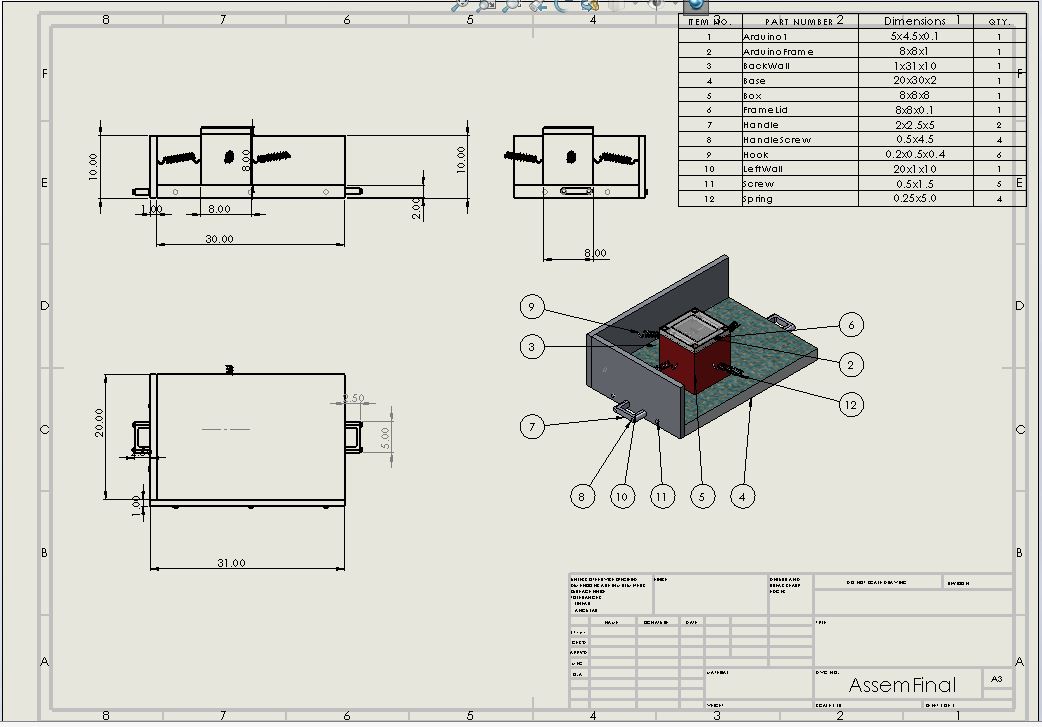

5. Final CAD drawing for the design.

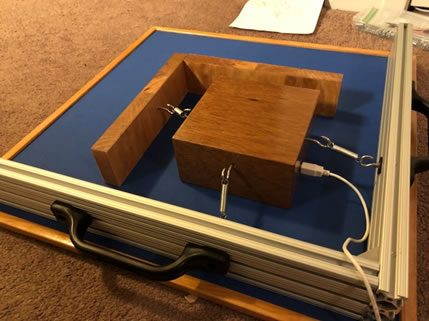

6. Final design during the test.
