Final Design

Site Layout

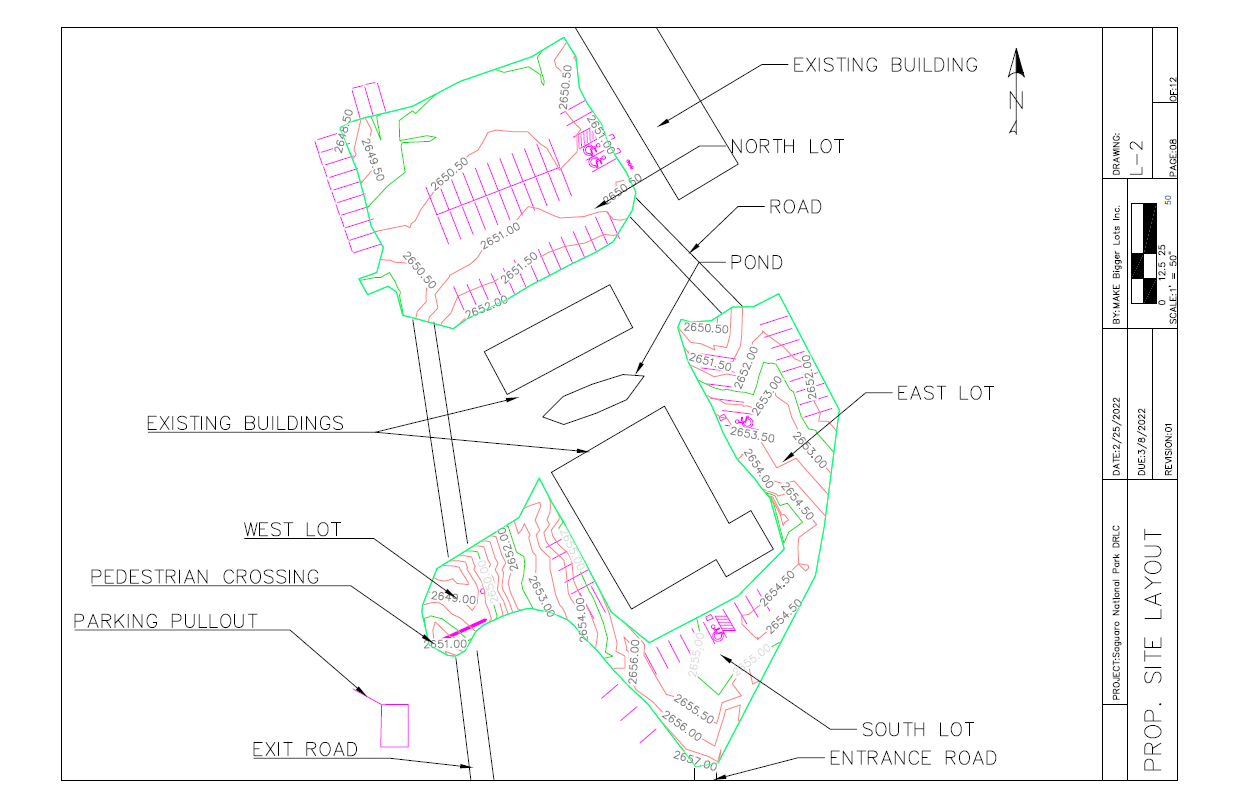

There is a total of 78 stalls including 4 ADA stalls. There is a parking pull out in the west lot, a bicycle rack added in the north lot, and a trail crossing in the west lot.

North Lot

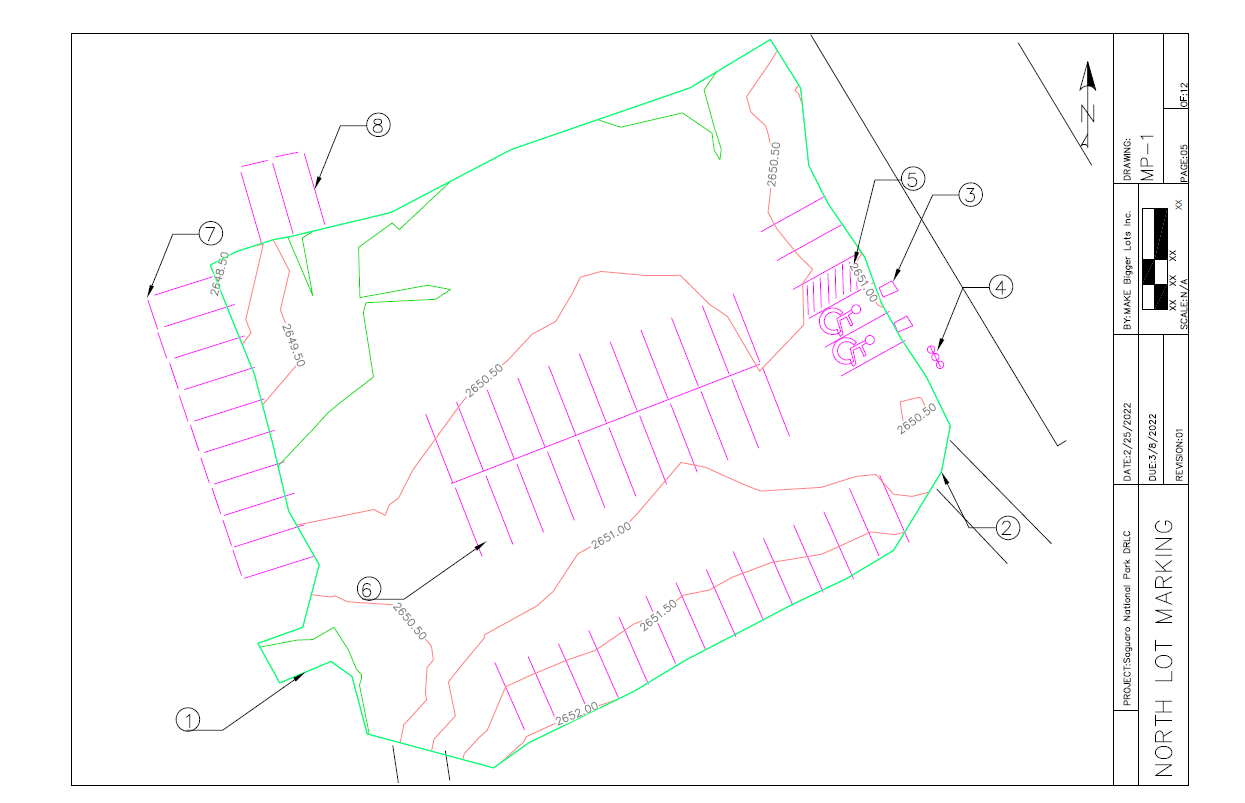

There is a total of 53 spots in the north lot with 2 ada spots.

East, South, and West Lot

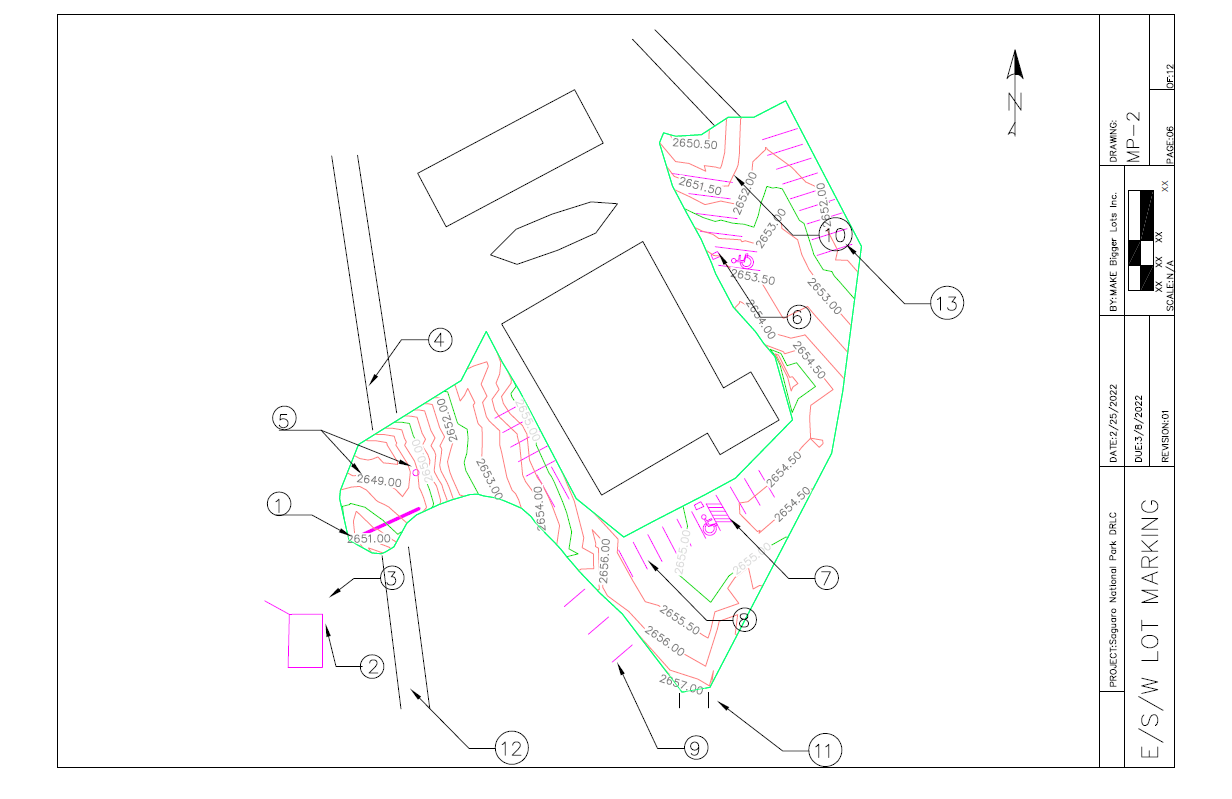

There is a total of 25 spots in the East, South, and West lot with one ADA spot in the east lot and 1 ada spot in the south lot. A combination of 45˚ stalls, 90˚ stalls, and 0˚ stalls in these lots.

North Lot Details

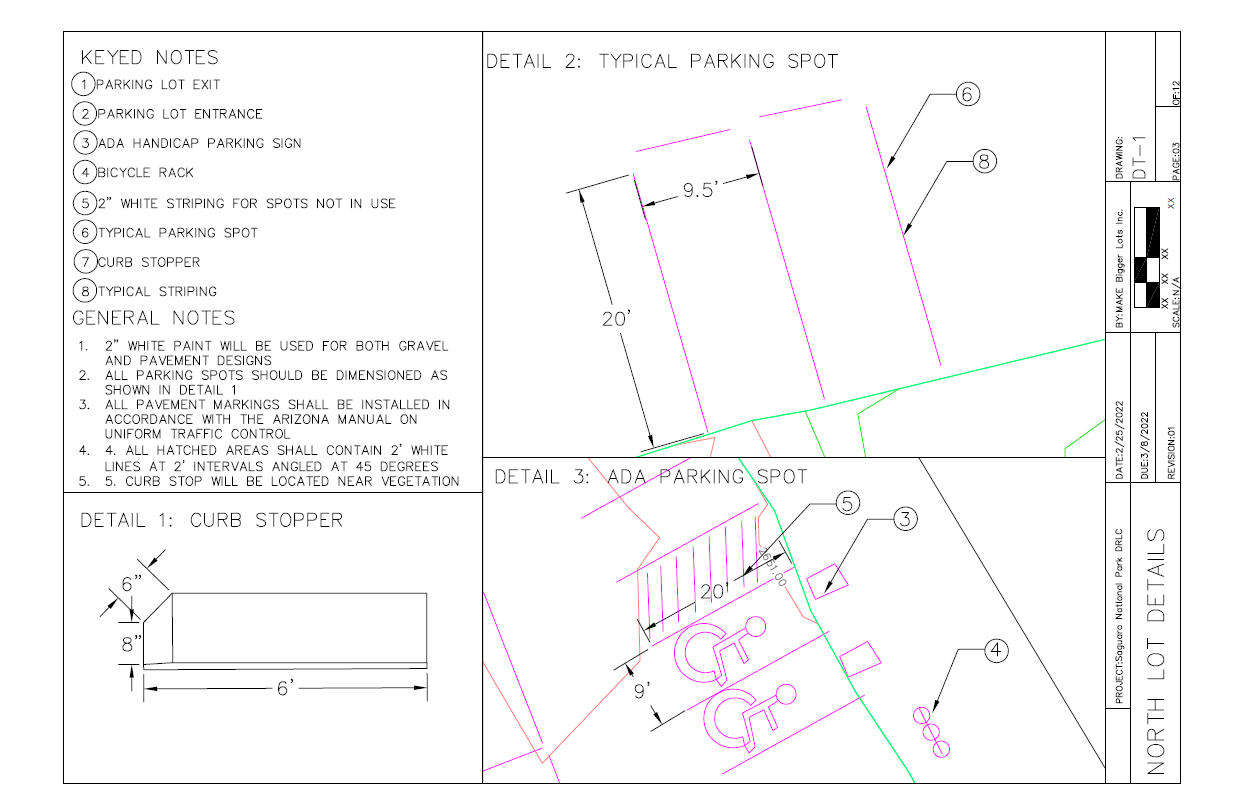

The details show dimensions of the parking stalls and all notes for how the lot will be constructed. The bicycle rack and curb stoppers are included.

East, South, and West Lot Details

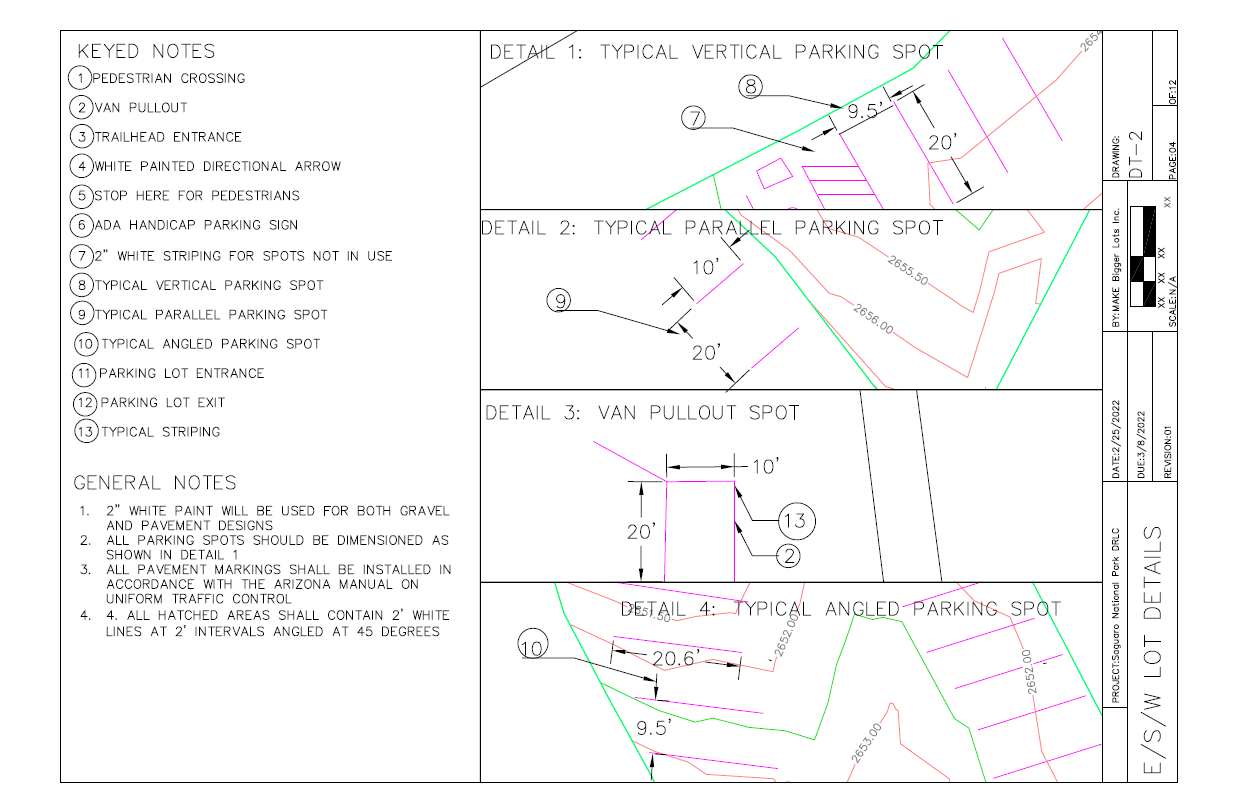

The details show dimensions of the parking stalls and all notes for how the lot will be constructed.
