| Solid Materials | Quantity |
|---|---|
| Type I/II/IV Cement | 600 pcf |
| Class F/C 80/20 Fly Ash Blend | 200 pcf |
| PVA RECS15 8mm Fibers | 1 pcf |
| Utelite Crushed Fines | 372 pcf |
| Utelite 10Mesh | 372 pcf |
| No. 6 Expanded Perlite | 128 pcf |
| Variables | Value |
|---|---|
| Plastic Unit Weight | 93 pcf |
| Dry Unit Weight | 75.6 pcf |
| Compressive Strength (7-day) | 1570 psi |
| Compressive Strength (28-day) | 2250 psi |
| Tensile Strength | 333 psi |
| Slump | 9 in |
| Air Content | 8.3% |
| Admixtures | Quantity (fl. oz/cwt) |
|---|---|
| MasterGlenium 7500 | 10 |
| MasterSet DELVO | 5 |
| MasterLife SRA-035 | 5 |
| MasterMatrix VMA 362 | 6 |
| Variable of Interest | Value | Units |
|---|---|---|
| Centroid from keel | 7.10 | in |
| Moment of Inertia | 819.8 | in^4 |
| Cracking Moment | 2568.8 | lb-ft |

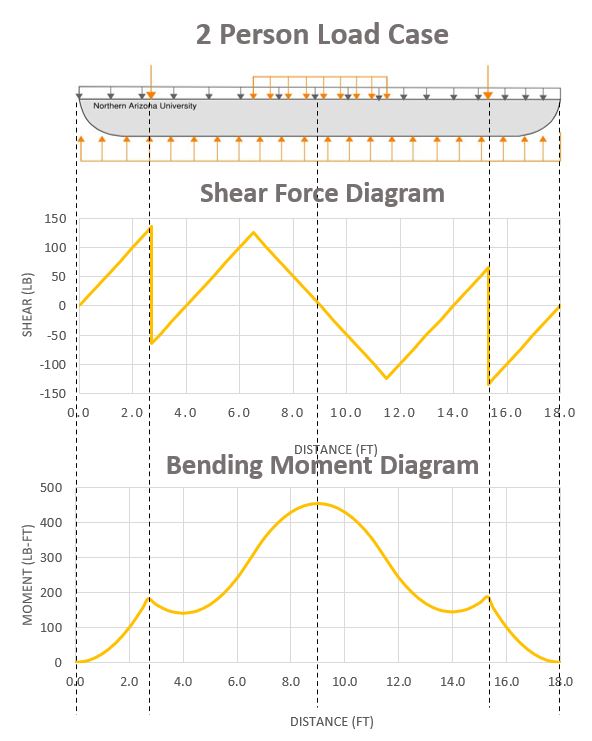

| Compressive Stress (2-person) | 72.5 | psi |

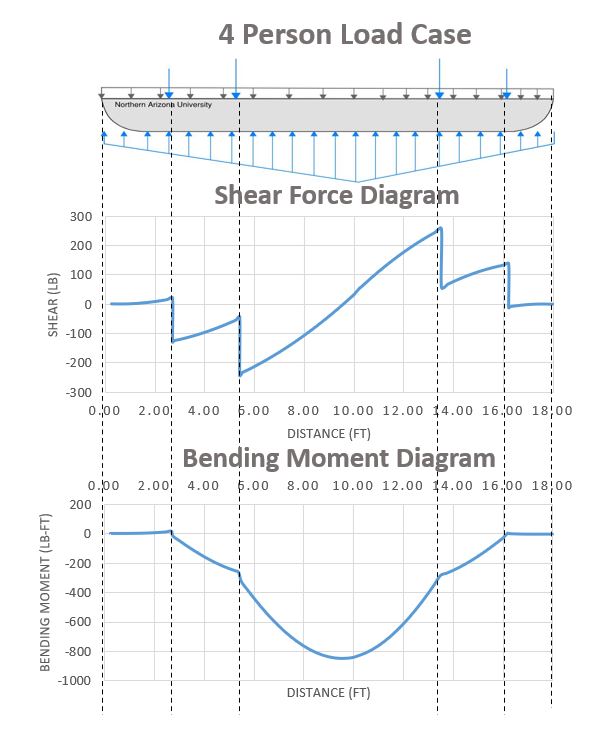

| Compressive Stress (4-person) | 135 | psi |
| Tensile Stress (2-person) | 47 | psi |
| Tensile Stress (4-person) | 88 | psi |
| Freeboard (2-person) | 0.42 | ft |
| Freeboard (4-person) | 0.35 | ft |
| Ultimate Bending Moment | 150718.8 | lb-ft |
