Core idea

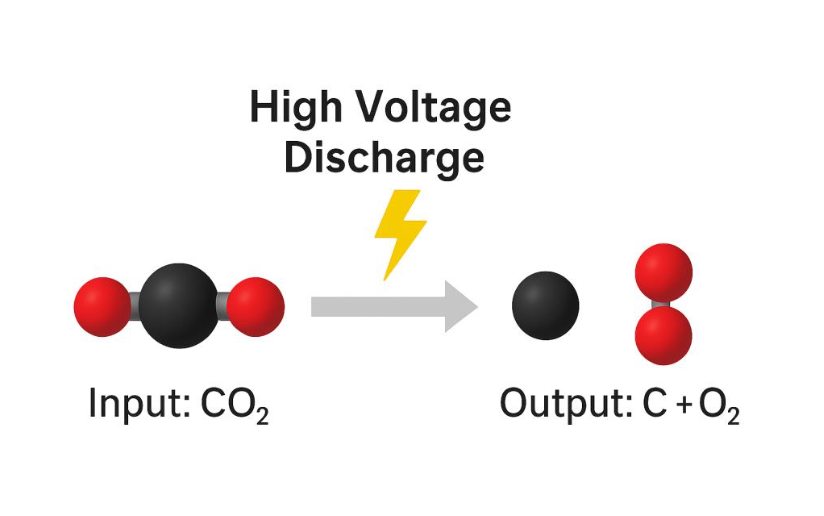

Generate repeatable high-voltage pulses (nanosecond-scale targeted) and couple them into a defined gas path. We prioritize controllability and measurement so results are defensible and reproducible.
Overview
What we’re building
This capstone deliverable is a controllable high-voltage pulsed-discharge platform: pulse-generation electronics, HV conversion, pulse conditioning/protection, a reaction chamber, and basic instrumentation (including mass flow measurement and logging).
What “Car Filter” means here
“Car Filter” is the long-term application framing: a compact module that could be integrated into vehicles to reduce CO₂ emissions. In the capstone timeframe, we are building and validating the prototype platform and test methodology.
Project overview video
Short video update showing the current state of the build and direction.
If the embedded player does not load, open on YouTube:
Watch video
Engineering Update
Why we pivoted to nanosecond pulsed discharge

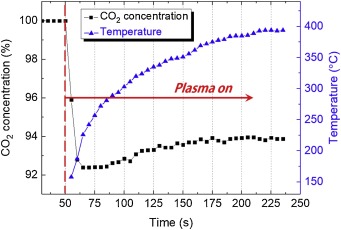

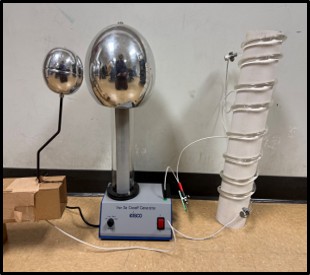

We originally explored a low-frequency, high-voltage spark approach using a Van de Graaff generator. We are now pursuing a nanosecond pulsed-discharge architecture because it supports better controllability, repetition-rate tuning, and measurement-driven iteration.
Original concept: low-frequency, open-air sparks
High-voltage spark behavior is difficult to control, hard to measure consistently, and poorly matched to repeatable experimentation. For a capstone deliverable, we need a platform that can be tuned and instrumented with clear operating conditions.
Current direction: fast pulsed discharge
Nanosecond pulsed discharge emphasizes fast voltage transitions and repeatable pulse delivery into the chamber. The goal is a controllable electrical drive that supports systematic testing (repetition, pulse timing, and flow) with logged conditions.
Phase 2.1 · Bring-up
StormFlask 2.0 platform
Establish a baseline chamber and pulser electronics that can be safely brought up and measured.
- Chamber assembly + electrode iteration
- Pulse-generation electronics integration
- Baseline measurements and repeatable behavior checks
Phase 2.2 · Pulse shaping & iteration
Refine the discharge regime
Improve pulse delivery and discharge stability through electrical and mechanical iteration.
- Pulse conditioning/protection network revisions
- Electrode geometry adjustments and spacing sweeps
- Repeatability mapping versus flow and repetition rate
Targets · Initial Operating Window
Voltage, repetition, control
Early testing uses bounded ranges suitable for safe staged bring-up and instrumentation.
- HV output target: 10–15 kV (load dependent)
- Repetition rate: kHz range (tunable)
- Mass flow monitored and PWM-driven via ESP32/Arduino
Long-term goal: improve efficiency and packaging so the concept could evolve into a compact module compatible with new or existing vehicles. In the near term, we prioritize a safe, repeatable platform and defensible measurements.
System Architecture
Prototype architecture at a glance
Control → pulse generation → HV conversion → pulse conditioning/protection → chamber. Instrumentation includes mass flow measurement and operational logging.
High Voltage
- Transformer-based HV stage (pulsed output)
- Pulse delivery is load dependent and instrumented
- Designed for controlled pulsed operation
Electronics
- MCU control (ESP32/Arduino-class)
- Isolated control path + switching/pulser stage
- Protection elements to reduce overstress

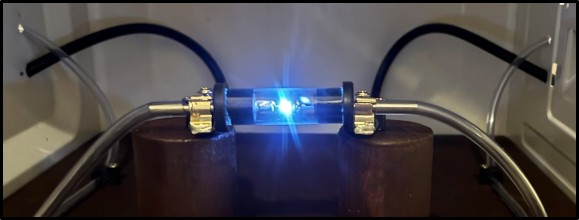

Chamber

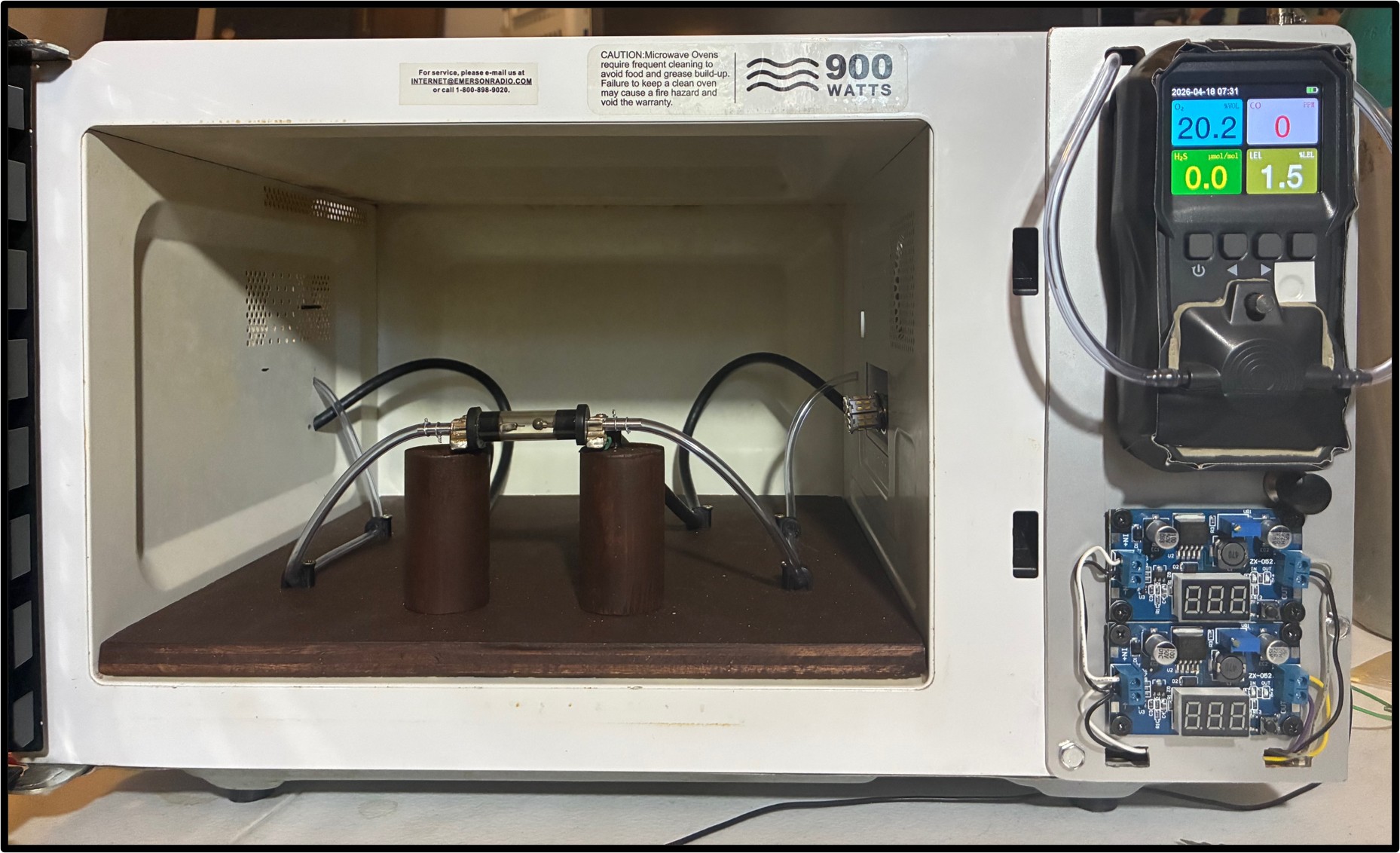

- StormFlask 2.0 test article (Phase 2.1)
- Interchangeable electrode configurations
- Defined gas path through the discharge region
Instrumentation
- Mass flow sensor in-line on the gas path

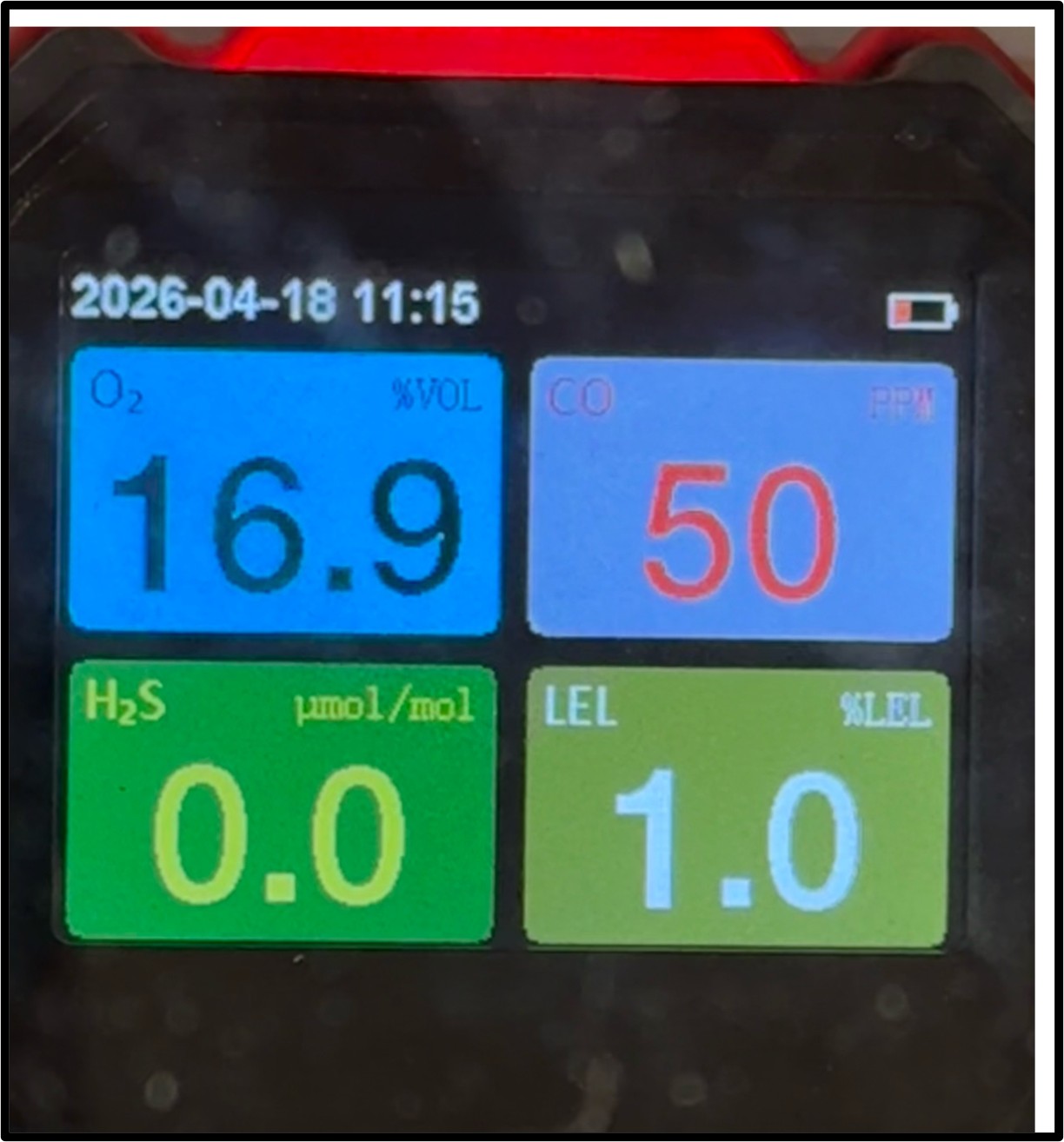

- Electrical measurements (waveforms, stability trends)
- Structured test procedure and logging
Tap / hover a block
Control → Pulses → HV → Conditioning → Chamber → Measurements
Documentation
System diagrams (current) & build status

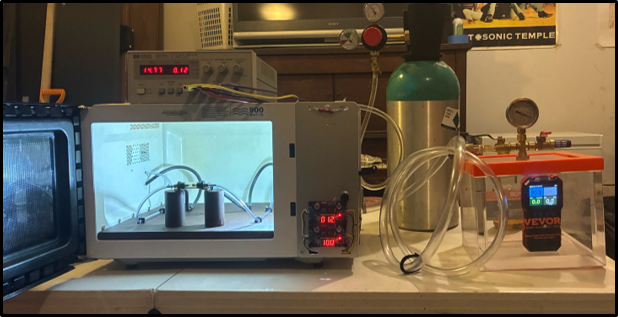

The diagrams below reflect our current architecture and control approach. Build photos and measured performance will be added after Phase 2.1 bring-up and instrumentation validation.

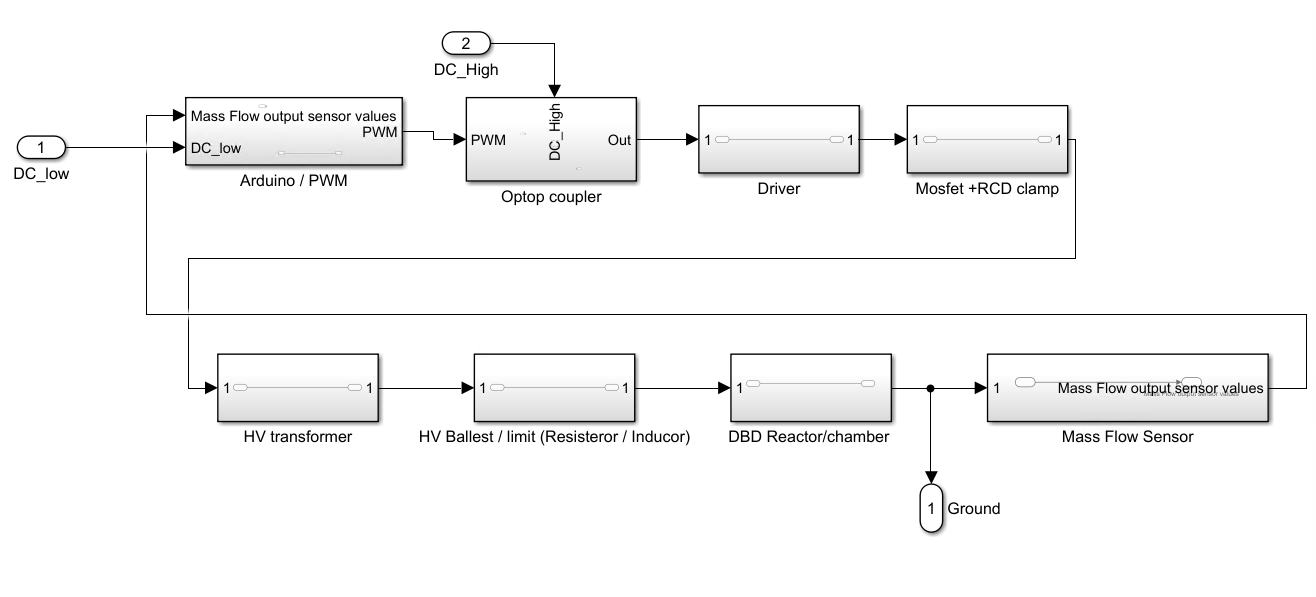

System flow (control → pulses → chamber → measurement)
MCU control is isolated, drives the pulser stage, feeds the HV conversion stage, then delivers pulses into the chamber through a protection/conditioning network. Mass flow measurement supports repeatable testing and logging.

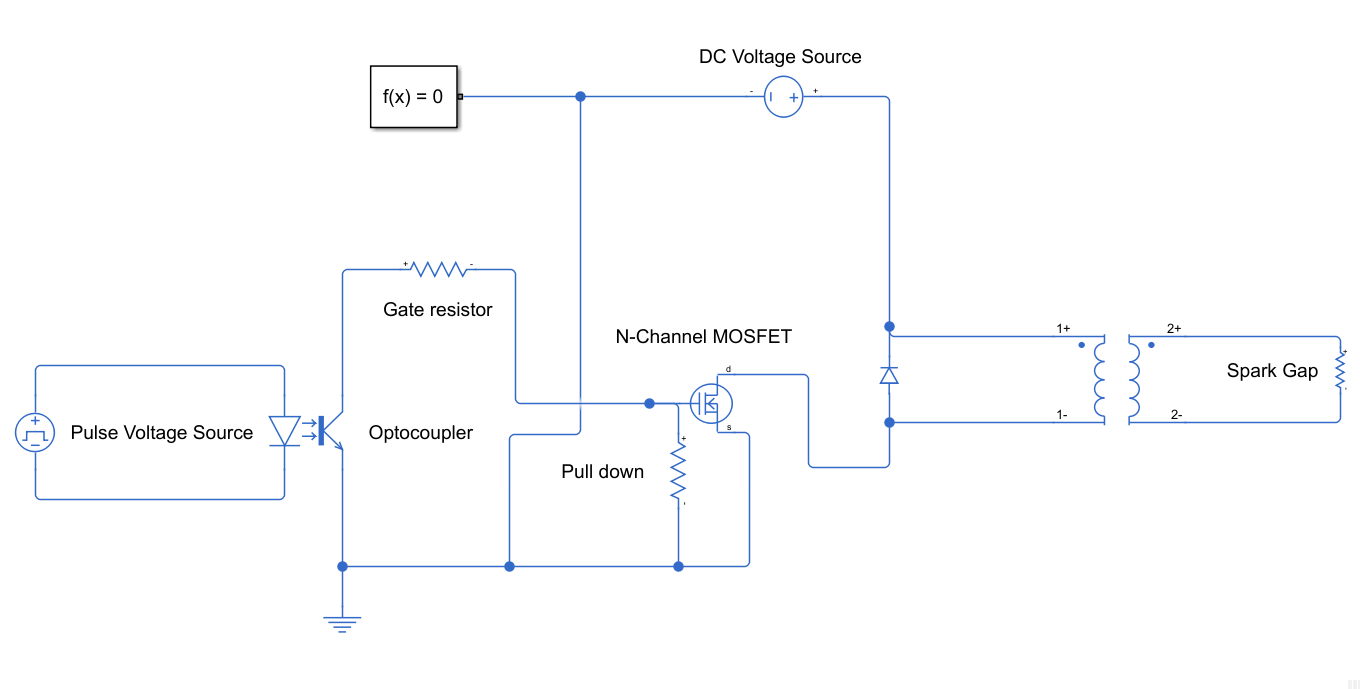

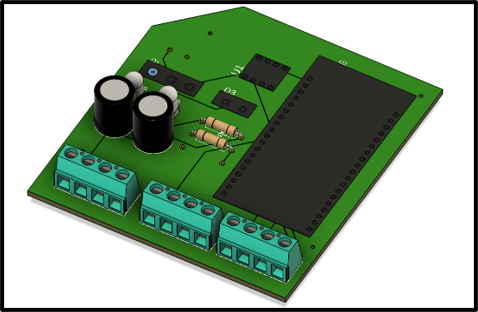

Pulser electronics (switching + HV step-up)
The pulser stage converts low-voltage control into a fast primary waveform for the transformer-based HV output. Protection elements (as used) reduce switching overstress and improve survivability.
Practical Constraints
Realistic expectations
The goal is a stable, testable prototype platform. Performance claims are bounded by measurement, safety, and the realities of a senior-level engineering build.
What success looks like
Repeatable discharge behavior, a bounded operating window, documented test procedure, and measurable trends (electrical + flow/instrumentation).
Safety constraints
High voltage requires strict grounding, controlled enclosures, staged bring-up, and documented procedures. Safety is treated as a subsystem.
What we won’t overclaim
We do not claim industrial-scale conversion in a capstone. The deliverable is an engineered platform and validated experimental process.
For detailed build phases, roadblocks, and test plans, see the Progress page.
