Design Process

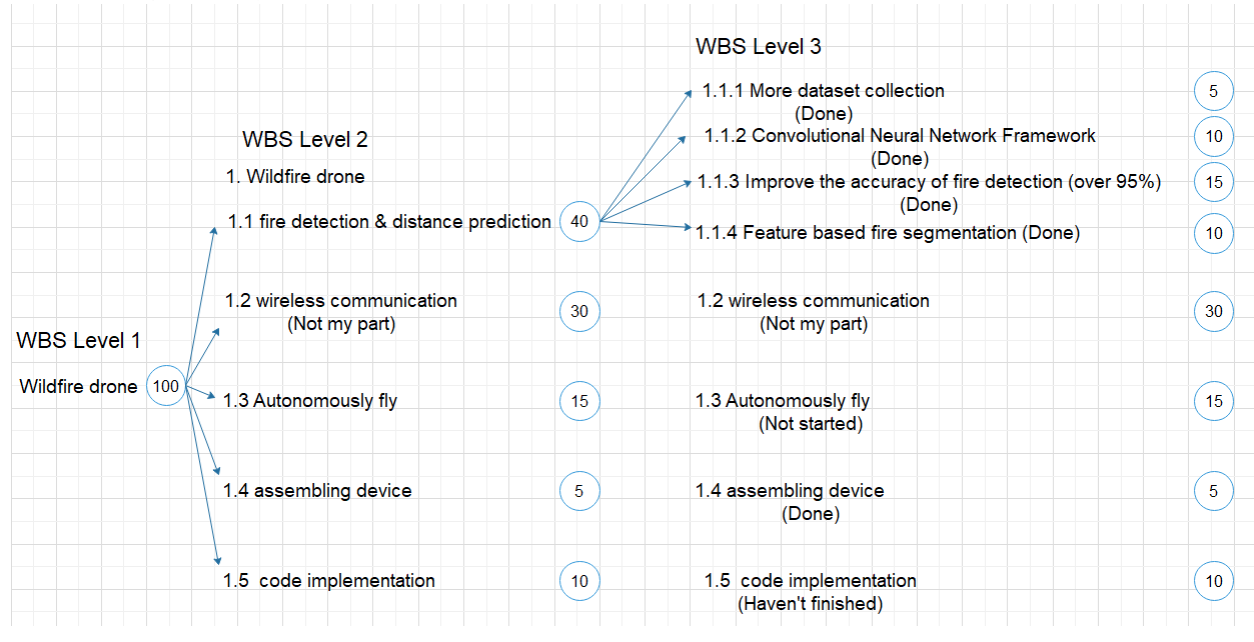

Our team was broken in to two sub teams this WBS shows the overview of objectives for the image processing section of the project

Image Classification using a Convolution Neural Network

One of the main parts of this project is to identify if there is a fire in the image/video captured by the camera. In this part, my approach is using a neural network. Neural networks are the most powerful tool in the image classification which is also fit in our case.

However, normally, convolutional neural networks (CNN) needs to be supported by a high computational equipment which is impossible for us to use in an embedded device. Fortunately, there is a lightweight network structure named mobilenet. It’s structure allowed us to embed it into a Raspberry Pi 4 and still have a high classification accuracy.

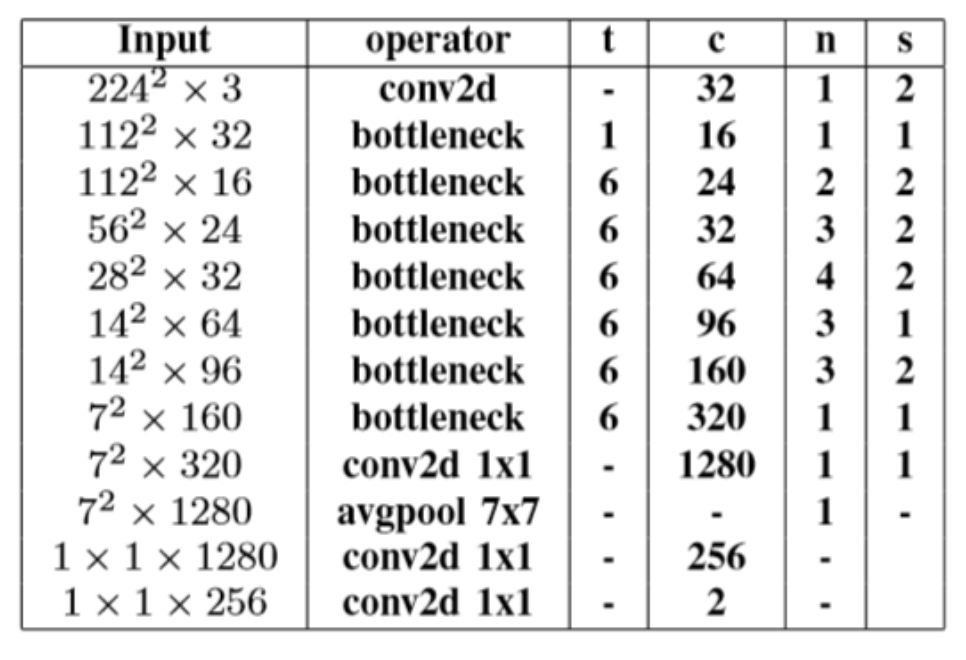

Levels of CNN Implemented

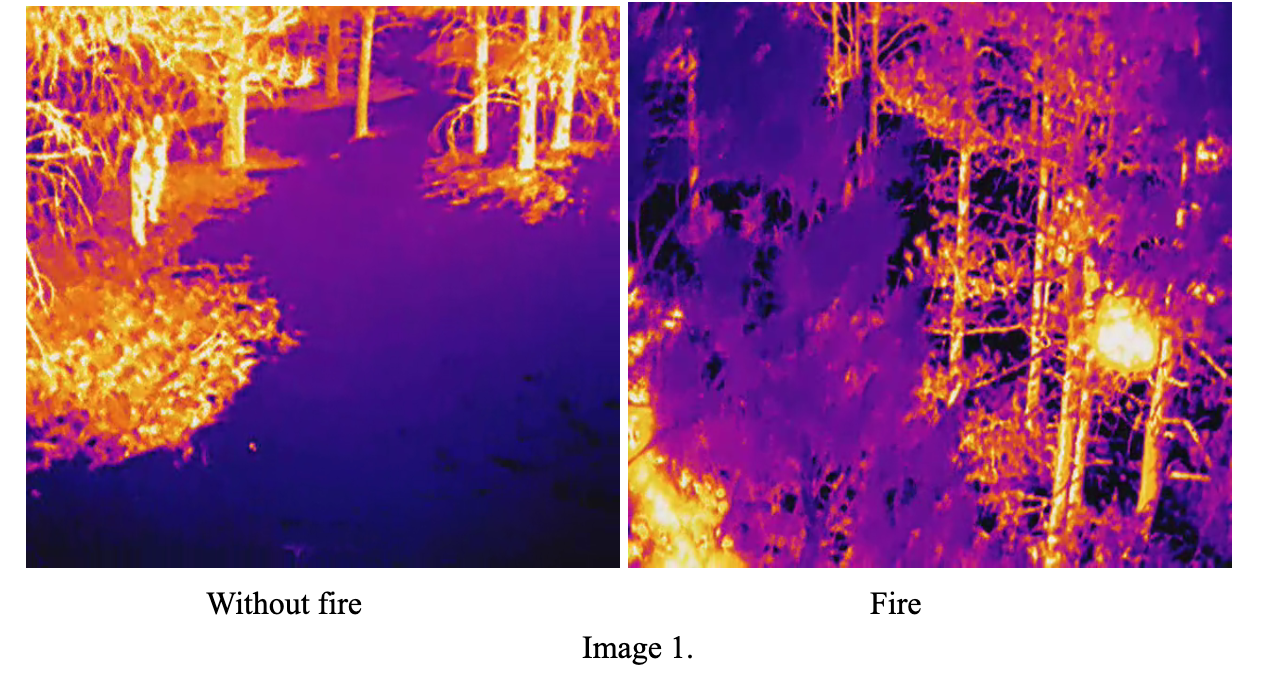

This example shows how the machine learning algorithm performs binary classification to seperate fire images from non-fire images

We developed two seperate machine learning algorithms one fore visible light images and another for thermal images. It produced an accuracy of 96.4% and 64.2% repectively


Image Segmentation

We implemented an additional layer of image processing to pin-point the location of the fire in the "Fire" classified image. We tested 2 algorithms(RGB and Binary),both which were thershold based alorithms with multiple layers of image refining.


RGB Image Segementation

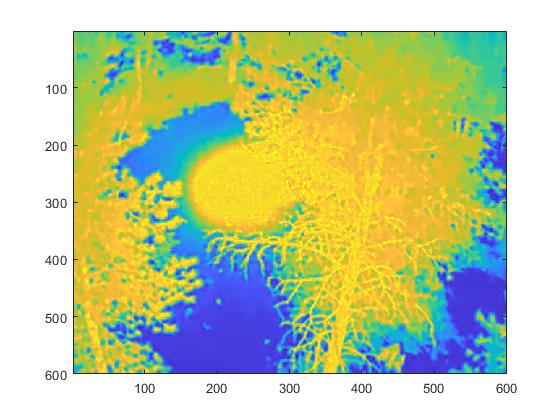

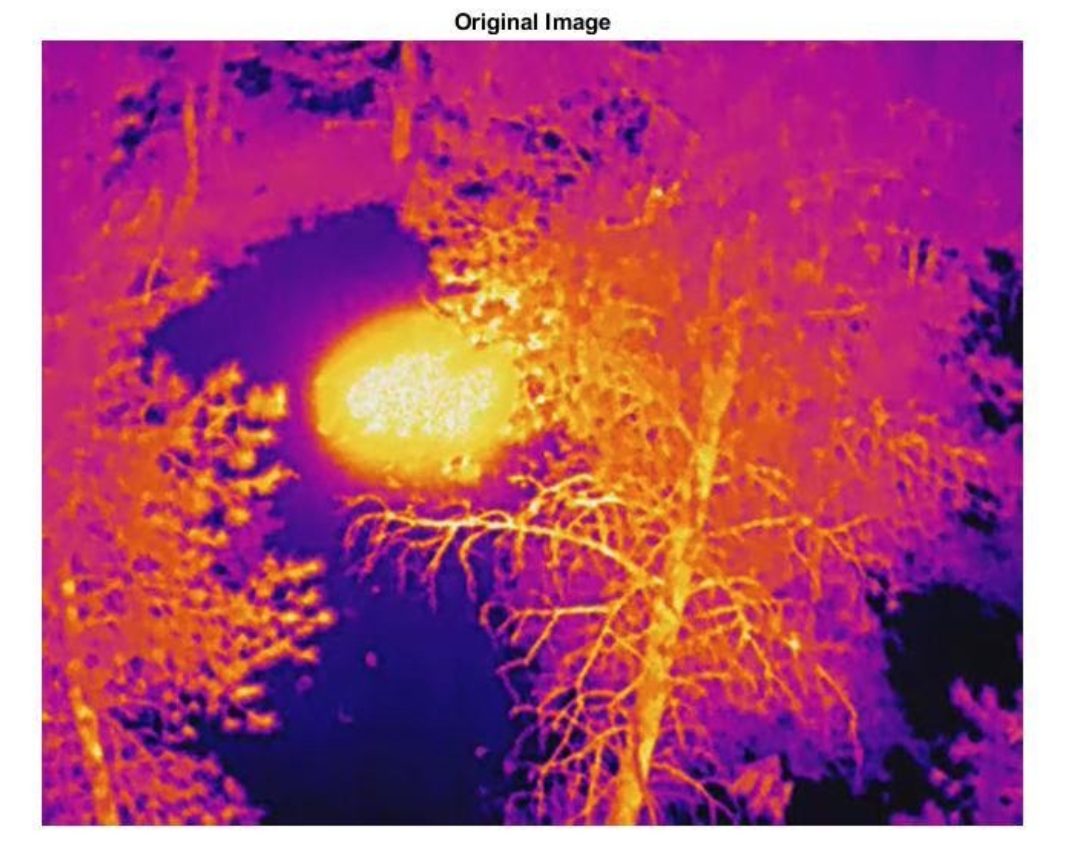

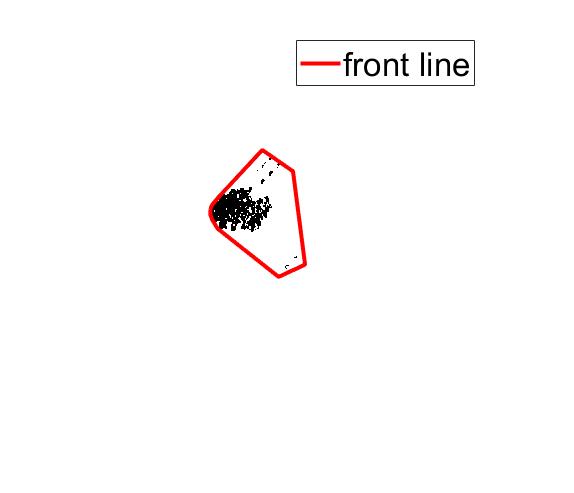

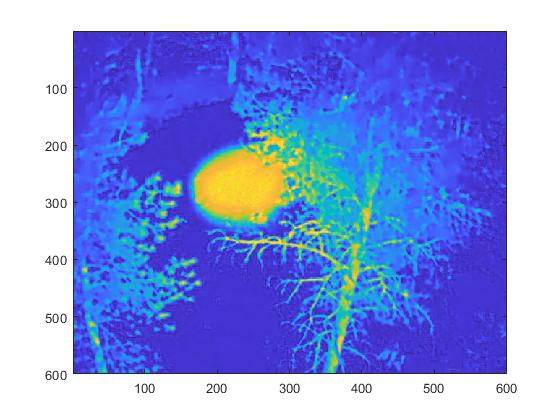

The process of detecting the front line of the fire using RGB color seperation

Boss Boss Boss

Binary Image Segmentation

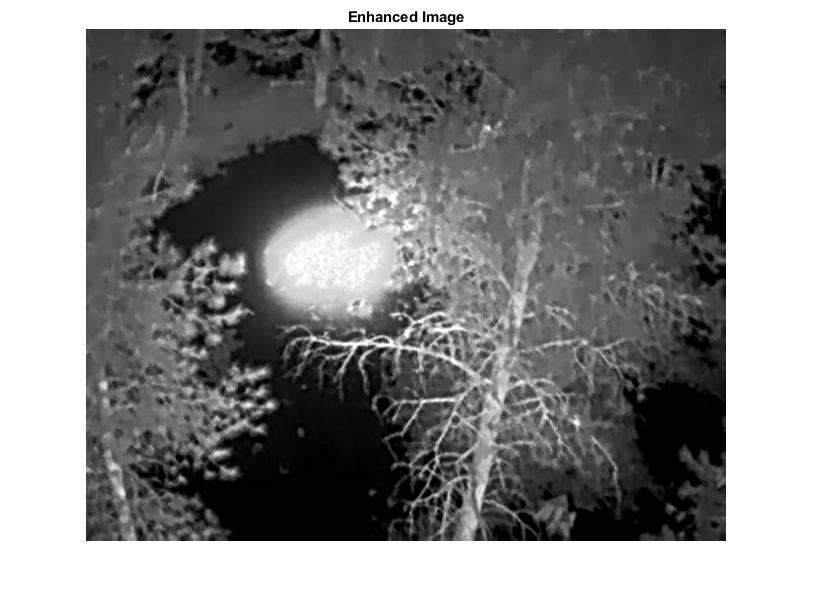

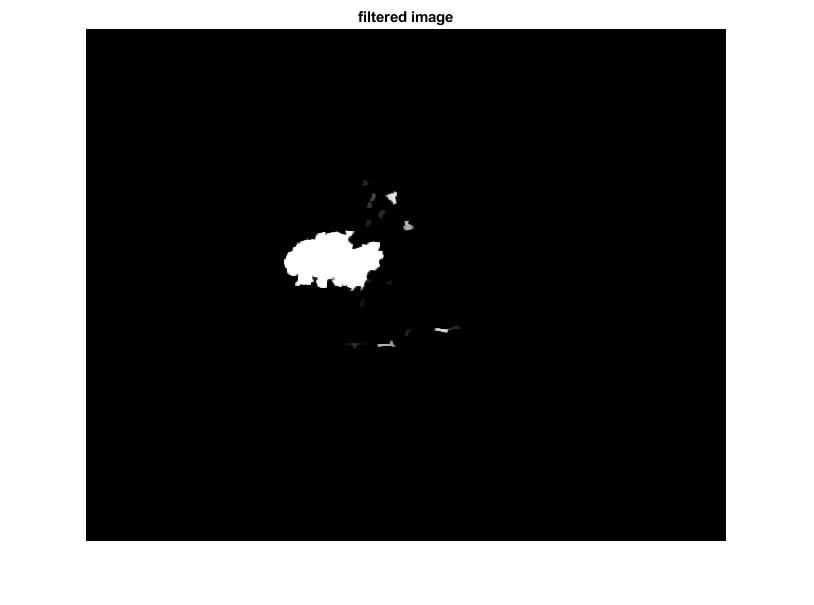

The process of detecting the location of the fire using binary image segmentaion and noise filteration using curvature filter
