Ground Robotics Platform for Predictive Communications
We plan to implement a test platform to implement and test predictive
communication protocols with the objective of minimizing transmission power.

—————————————————— —————————————————

PC - send message - robot


———————————————— —————————————————

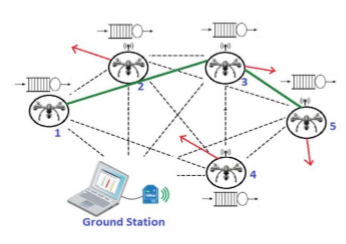

Executing a standard shortest path algorithm at time t=t0 with no prior information about

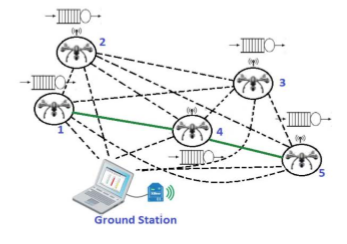

the motion trajectories of the nodes yields the path (1 - 3 - 5) (left hand side). However,
in a dynamic topology, the transmitted packet meets node 3 at time t=t1 (right hand side).
Apparently, at time t=t1 with the new node locations, the previously chosen path is not optimal
anymore, since another path (1- 4- 5) is shorter. if the source node would have taken into account
the projected network topology at time t=t0, it would have chosen the optimal path (1 - 4 - 5) at the first place.


———————————————— —————————————————

first semester's research

Our research phase consisted of us dividing the research topics amongst our group members. We Researched many aspects of predictive networking and its applications. Our main research focus point was finding the most suitable Localization system, the remaining minority of research time was devoted to finding a platform that suited our needs, and researching the best microprocessor and accompanying programming language that suited our needs.

Our design

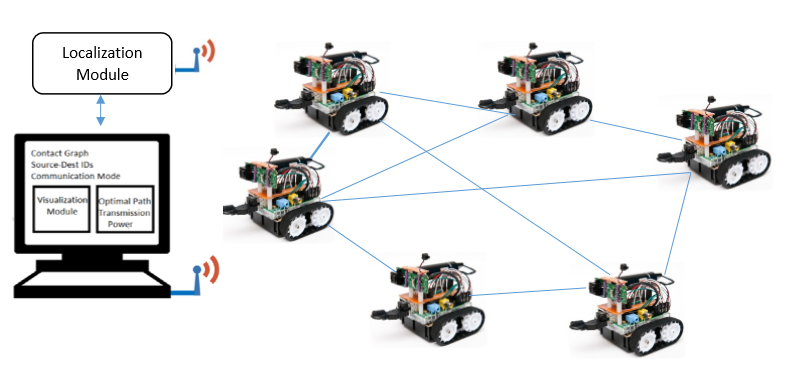

Based on our research, we found that the most adequate form of localization for our project would be a mixture of Camera recognition and LIDAR. To confirm our design choice we inputted the alternatives into a decision matrix which alsop yielded this result. Our design consists of five robots controlled with Raspberry Pi’s that communicate to a server which is controlled by a computer. The robots would be localized using the Camera + LIDAR system.


The system starts on the computo, in which the user would input path preference and function ( functions include ; power efficiency, transmission speed efficiency). When the user is done inputting commands through the GUI the system would proceed onto executing the commands.

The camera would take pictures every one second and sends that picture to the server in which the picture would be analyzed by a program called “ Zxing” which is a QR Code camera recognition system (Based in Java). Using the QR code reader, the Robots would be identified (Due to the QR codes being printed on the platforms themselves). Then a series of calculations are made to compute distances between the robots and our grid edge, this would mean that location data on each of our robots is available. THese distance calculations would be checked by using the LIDAR sub-system (which is very accurate at determining distances). After the completion of these tasks the platforms would execute the user commands.

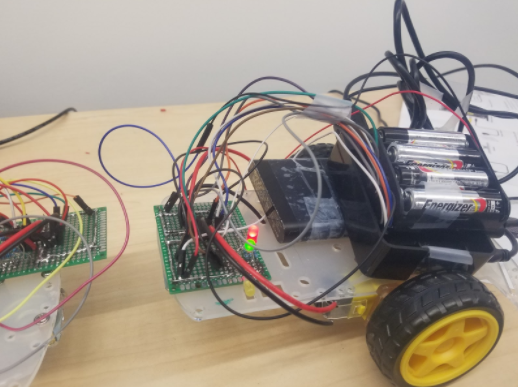

This is our prototype.

For our prototyping phase, we decided to build two of the robots to test the system on a simple linear motion planned path. In addition to this we developed the server so that these two robots can easily communicate with our computer and developed the QR Camera Recognition system. With these Base systems running we are able to experiment and see whether the proposed method is more efficient than the conventional methods.

Experimentation And Simulation

For our experiment we decided to see whether transmission delays for our system were efficient. So we ran the program for 1 minute and programmed the path to be a simple back and forth linear motion. THen we analyzed the video to check whether the calculated delay time is higher or lower than our experimental results delay time. We did this twenty times and calculated the error between experimental results and calculated results. Our results show that if we had a system of 50 nodes then the proposed method is 10% more efficient in regards to power efficiency.


———————————————— —————————————————

second semester's research

Our objective is to finish the new prototype and complete the last part of GUI and LIDAR. Develop a system for Predictive routing algorithm which enables a delay-optimal communication through incorporating network topology prediction into the Dijkstra’s shortest path algorithm. In this work, we extend the proposed solution to jointly optimize the end-to-end latency and total transmission power.

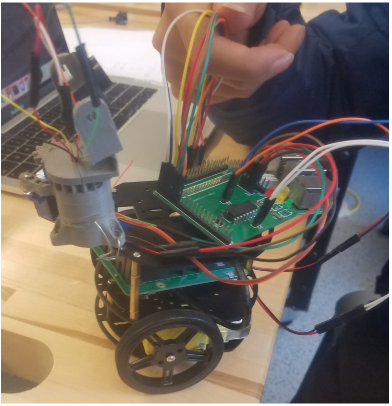

New Platform

We use 3D printer to print the LIDAR frame.We used two wheels robot car as the carrier. Each wheel is driven by a separate motor.The robot car is divided into three layers. Two motors were placed at the bottom layer.A battery pack (power supply system) is placed in the middle layer.

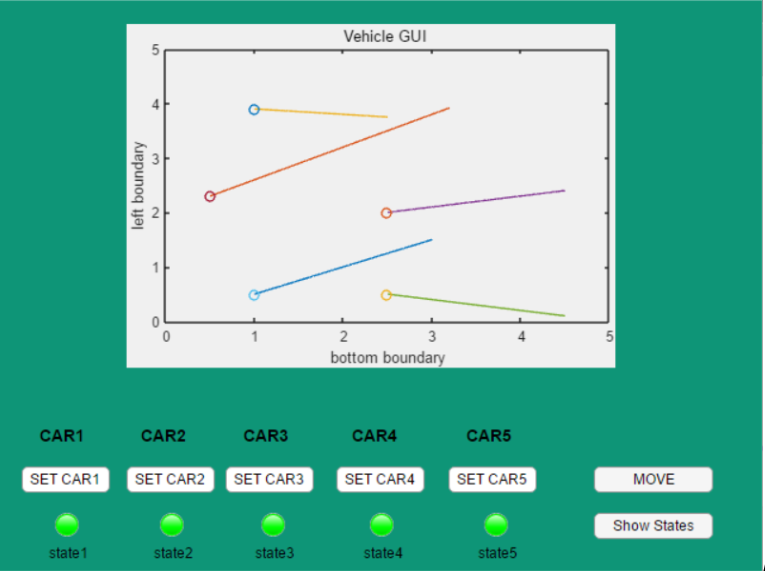

GUI System

Localization system provides positions to database, then database store these information and sends them to GUI. GUI can use position information to show the user the five platforms.The Predictive algorithm then uses the database information to calculate optimal paths and shows the user these paths through the user interface.

Communication System

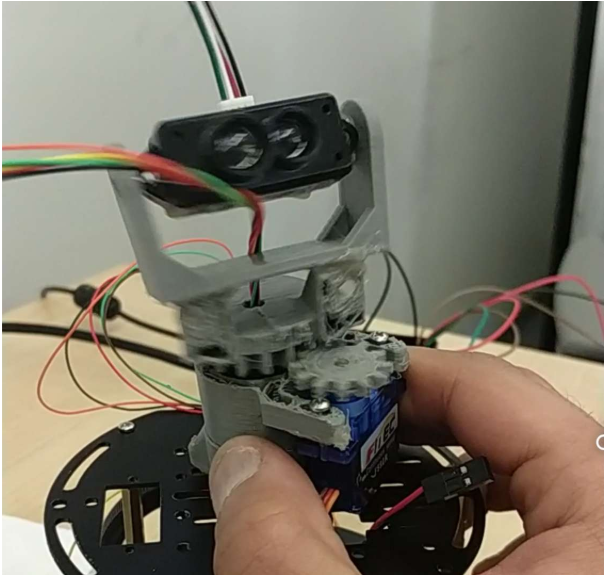

(3D printed LIDAR system)

In our project, we implemented two different localization methods. One is centralized, and the other is distributed. For the centralized one, we used a QR code/reader system to localize the robots. The basic idea is taking photos at a specific rate from above all 5 robots which have a huge QR code on their top. We were able to recognize the location of each QR code therefore localizing the cars. We use lidar as the distributed system. The invisible light which is transmitted by the robots and reflects back from objects. The robots can get the distance by calculating the time of flight of the laser (TOF). After the robots get the distance between them and the reference points, we set the robot so it can get the position by applying gps type tri-angle positioning algorithm.


Localization system provides positions to database, then database store these information and sends them to GUI. GUI can use position information to show the user the five platforms.The Predictive algorithm then uses the database information to calculate optimal paths and shows the user these paths through the user interface.


———————————————— —————————————————

Conclusion of the project

We are pleased that you have chosen Predictive communications team for your needs. Due to the increasing complexity of current technology, it is necessary to perform the proper research and implementation of methodologies in order to accommodate this increase in complexity. Current Networking methods lack in efficiency when applied to dynamic fast moving networks. The proposed algorithm tries to fix the problem of efficiency in regards to Power and End to End delay by providing a predictive routing algorithm that will increase efficiency by 10% for moderate sized networks , and more gains for larger networks. It is our job to provide a platform to test and evaluate the proposed algorithm. By creating a network of five car robots operating in linear fashion, the user can test the efficiency gain of the proposed algorithm vs conventional techniques. The system has been designed to the specifications of the client,some of these specifications include: Decentralized distributed system design; Graphical user interface (GUI);Distributed localization method;Path prediction Interface. Professor Razi’s guiding hand steered us in the proper direction during trivial times, which is much appreciated. We hope that the client utilizes and benefits from the system to the highest degree.

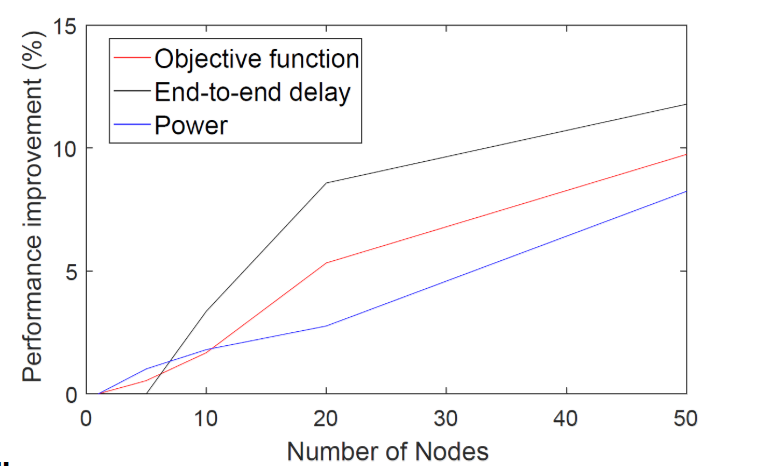

result1 shows the effect of the number of nodes in the efficiency of the method proposed. It is observable that as number of nodes in the network increases, the optimal algorithm exhibits a higher performance improvement in terms of delay and power utilization compared to the conventional algorithm.


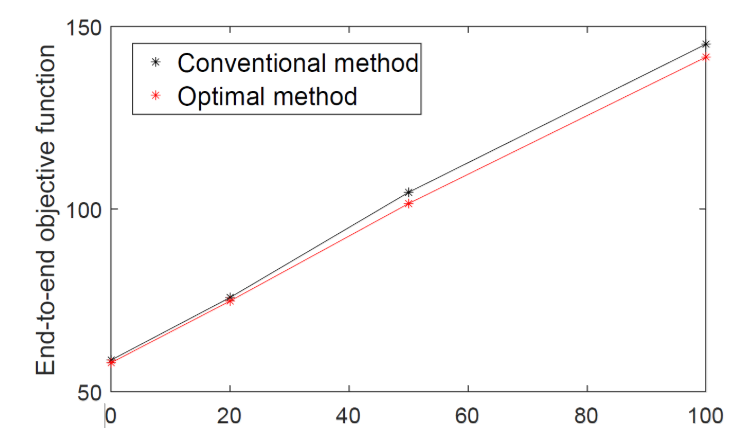

result2 shows that as we increase the waiting time for each node, topology changes are more severe and we obtain higher gains by predicting network topology. Therefore, substantial benefits can be obtained for queued networks with heavy traffic mode.

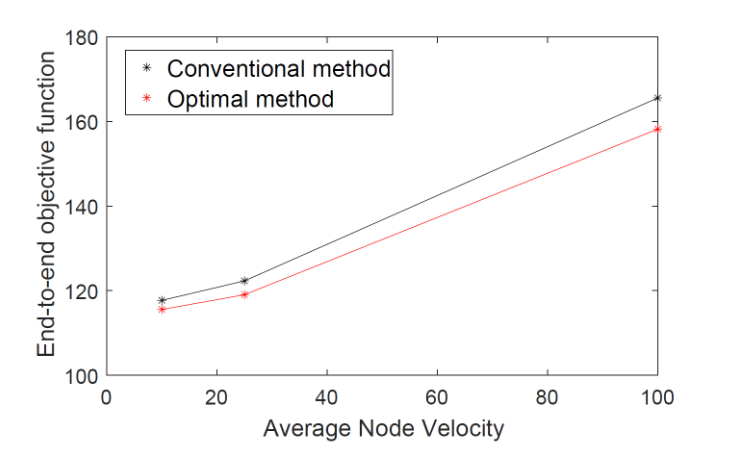

result3 shows the optimal method improves compared to the conventional, for higher node velocities the network topology is evolving rapidly ,the proposed algorithm shows a better performance.

Simulation results confirm an improvement of about 10% for moderate network sizes. The performance gain increases for larger networks, larger average waiting time and higher node velocities.


———————————————— —————————————————

Here is the document list about this project, you can download them.


———————————————— —————————————————

Abolfazl Razi : Research is remote sensing and predictive modeling.


———————————————— —————————————————
