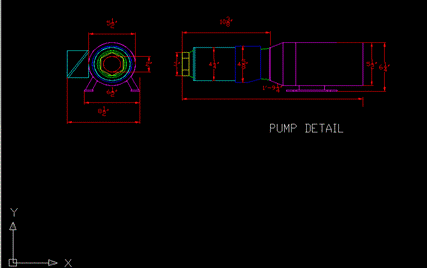

This is an ACAD drawing of the water supply pump chosen for the project.  It is a Booster pump.


3 - D Land Development Desktop Software

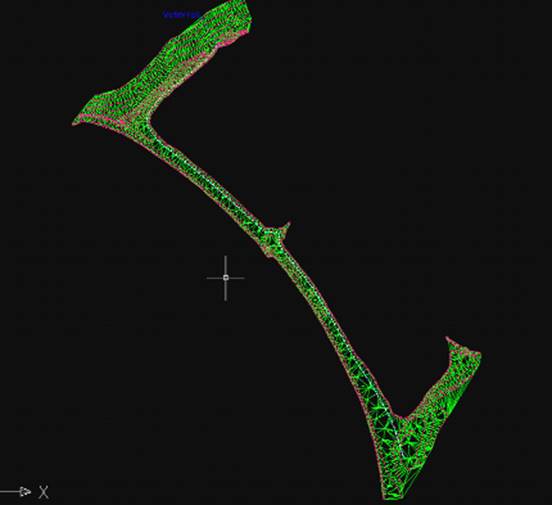

T.I.N. Model of Hinchinbrook Island and Nuchek.

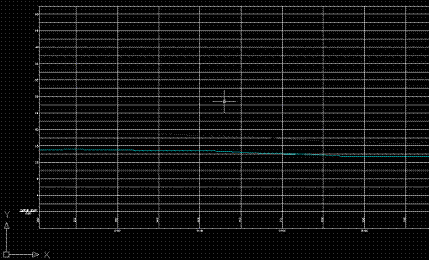

An alignment of our Water Supply Line was created.  Then from that alignment a  profile was created.  To the right is an excerpt of that profile.  The brown line represents the grade with respect to that station, the blue line represents the water supply pipe.
